Midlands
0121 772 1010
North
0161 865 3800
sales@keystonecastors.com www.keystonecastors.com
COMBINED Swivel & Wheel Brake
Available on 150mm and 200mm
castors only. To order add the suffix
‘SWB’
to the plain swivel castor
Catalogue ref.
The swivel radius will increase to:
150mm dia. = 153.5mm
200mm dia. = 156.5mm
Medium to Heavy Duty Castors: 160kg - 600kg
WHEEL BEARING OPTIONS
Plain bore options
are available for the following wheel types and sizes.
NYB -
150mm and 200mm. To order replace
‘NYB’
in Catalogue ref. with
‘NY’
RTB -
125mm, 150mm and 200mm. To order replace
‘RTB’
in Catalogue ref. with
‘RT’
CIB -
100mm, 125mm, 150mm, 200mm. To order replace
‘CIB’
in Catalogue ref. with
‘CI’
Ball Journal Bearings
available for the following wheel types and sizes.
RTB -
150mm and 200mm. To order replace
‘RTB’
in Catalogue ref. with
‘RTBJ’
SUB -
150mm and 200mm. To order replace
‘SUB’
in Catalogue ref. with
‘SUBJ’

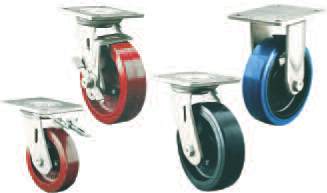

SL Series
Medium to Heavy Duty Range
Fabricated steel bracket with yelow passivated zinc finish
Double ball bearing swivel head
Wide selection of wheel types
Load Capacities of 160 - 600kg
Two way directional lock and footbrake options
Combined swivel and wheel brake options to some sizes
Wheel sizes from 100mm to 200mm
Wheel
Dia.
(mm)
Tread
Width
(mm)
Load
Cap.
(kg)
Overall
Height
(mm)
Plate / Bolt Hole
Dimensions (mm)
Suits
Bolt
Dia
(mm)
Wheel
Type
Bearing
Type
Swivel
Radius
(mm)
Catalogue Reference
Plate Hole Ctrs
Swivel
Wheel Brake Swivel & Wheel
Brake
Fixed
100 32 270 140
135 x 110 105 x 80/75
10
Nylon
Plain
83
SL4NY
SL4NYBK
-
SLF4NY
100 43 160 140
135 x 110 105 x 80/75
10
Rubber Tyre / Cast Iron Centre
Roller
83
SL4RTB SL4RTBBK
-
SLF4RTB
100 43 295 140
135 x 110 105 x 80/75
10
Polyurethane Tyre / Cast Iron Centre
Roller
83
SL4SUB SL4SUBBK
-
SLF4SUB
100 38 450 140
135 x 110 105 x 80/75
10
Cast Iron
Roller
83
SL4CIB
SL4CIBBK
-
SLF4CIB
125 35 365 165
135 x 110 105 x 80/75
10
Nylon
Plain 102
SL5NY
SL5NYBK
-
SLF5NY
125 38 180 165
135 x 110 105 x 80/75
10
Rubber Tyre / Cast Iron Centre
Roller
102
SL5RTB SL5RTBBK
-
SLF5RTB
125 35 325 165
135 x 110 105 x 80/75
10
Polyurethane Tyre / Cast Iron Centre
Roller
102
SL5SUB SL5SUBBK
-
SLF5SUB
125 41 600 165
135 x 110 105 x 80/75
10
Cast Iron
Roller
102
SL5CIB
SL5CIBBK
-
SLF5CIB
150 38 520 190
135 x 110 105 x 80/75
10
Nylon
Roller
120
SL6NYB SL6NYBBK SL6NYBSWB SLF6NYB
150 45 400 190
135 x 110 105 x 80/75
10
Rubber Tyre / Cast Iron Centre
Roller
120
SL6RTB SL6RTBBK SL6RTBSWB SLF6RTB
150 38 545 190
135 x 110 105 x 80/75
10
Polyurethane Tyre / Cast Iron Centre
Roller
120
SL6SUB SL6SUBBK SL6SUBSWB SLF6SUB
150 45 600 190
135 x 110 105 x 80/75
10
Cast Iron
Roller
120
SL6CIB
SL6CIBBK SL6CIBSWB
SLF6CIB
200 38 600 241
135 x 110 105 x 80/75
10
Nylon
Roller
154
SL8NYB SL8NYBBK SL8NYBSWB SLF8NYB
200 51 585 241
135 x 110 105 x 80/75
10
Rubber Tyre / Cast Iron Centre
Roller
154
SL8RTB SL8RTBBK SL8RTBSWB SLF8RTB
200 51 600 241
135 x 110 105 x 80/75
10
Polyurethane Tyre / Cast Iron Centre
Roller
154
SL8SUB SL8SUBBK SL8SUBSWB SLF8SUB
200 45 600 241
135 x 110 105 x 80/75
10
Cast Iron
Roller
154
SL8CIB SL8CIBBK SL8CIBSWB SLF8CIB
Footbrake >
option
..
Directional lock
available on
swivel castors
only >
A Medium to Heavy duty range of Castors with double ball bearing swivel heads, fabricated brackets finished
in yellow passivated zinc. A wide selection of wheels, brake types and bearing options make this a versatile
range suitable for a wide range of applications.
Combined
Swivel/Wheel
brake
